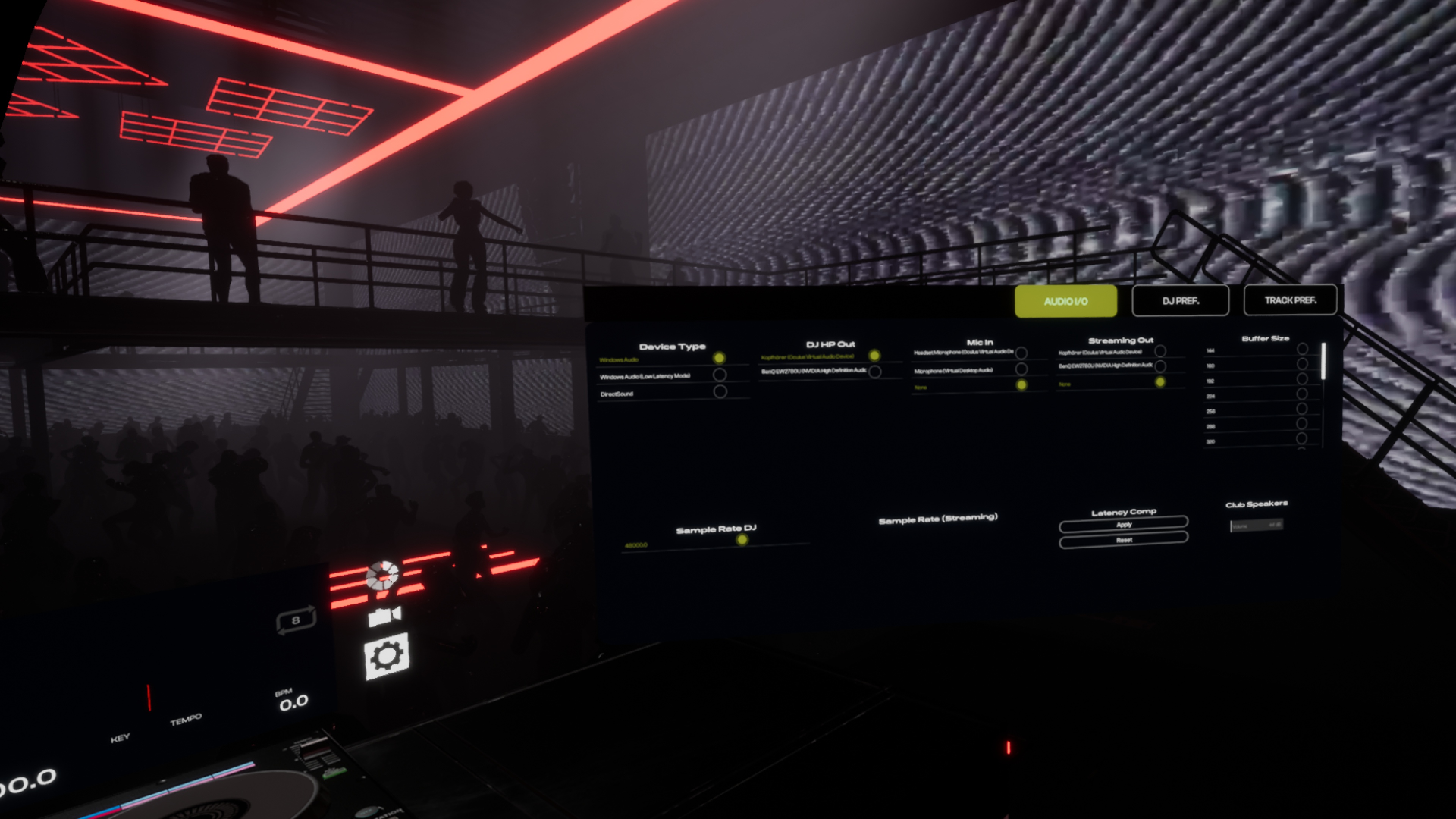

Audio I/O

Device Type

• Options: Windows Audio, Windows Audio (Low Latency Mode), [Your soundcard]

• Function: Selects the audio driver you want to use.

DJ HP Out (DJ Headphones Output)

• Options: Available audio output devices (e.g., Headphones, Speakers)

• Function: Determines the output device for the DJ's monitor.

Mic In

• Options: Available audio input devices

• Function: Selects the microphone input for voice-overs or announcements.

Streaming Out

• Options: Available audio output devices

• Function: Sets the output device for booth monitoring or live playback.

Sample Rate DJ

• Options: Various sample rates (e.g., 44100 Hz, 48000 Hz)

• Function: Defines the sample rate for audio processing.

Sample Rate (Streaming)

• Function: Sets the sample rate for streaming output (if different from DJ output).

Latency Comp

• Options: Apply, Reset

• Function: Allows compensation for difference in DJ HP Out and Streaming Out.

Buffer Size

• Options: 64 to 2048 samples

• Function: Adjusts audio buffer size, balancing between low latency and processing stability.

Club Speakers

• Control: Volume slider

• Function: Adjusts the Streaming Out volume.

Note:

Specific device names and options may vary depending on your hardware configuration.
